Quick Details

  • Place of Origin: Hebei, China (Mainland)
  • Brand Name: XINMING
  • Model Number: XM1+12/630
  • Usage: Stranding
  • Application: Cable Making Industry
  • Function: Stranding Wires
  • Type: Electrical Appliance Machinery
  • Processing material: Bare Copper / Aluminum / Steel Wire
  • Max. O.D. of stranded wire: 25mm
  • Stranding pitch: 47~354mm
  • Output speed: 18.6~141.5m/min
  • Voltage: 380V/Optional
  • Color: Customized
  • After-Sales Service Provided: Engineers Available to Service All in The World

Packaging & Delivery

Packaging Details Standard exporting packaging or as per customers' requirement
Delivery Time 35 days after receiving payment
Product Description

Product Application

Application:It is mainly applicable to produce stranded ACSR, aluminum wire, copper wire, aluminum-clad steel stranded cable, control cable and composite overhead ground wire (OPGW) and so on.

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization,no pollution

Specification
XMGJ-200/400/500/630 Tubular Stranding Machine
Type
Single wire dia (mm)
Max rotating speed of cage (r/min)
Stranding pitch (mm)
Diameter of the capstans (mm)
Copper
Aluminum
GJ500/6
Φ1.5-4.0
Φ1.8-5.0
500
22-314
Φ1250
GJ500/12
Φ1.8-4.0
Φ1.5-5.0
300
34-338
Φ1600
GJ400/6

Φ1.0-2.8
Φ1.6-4.0
650
22-165
Φ800
GJ400/12








Φ1.3-3.5
Φ1.6-5.0
400
32-238
Φ1250
GJ200/6
















Φ0.32-0.85
Φ0.32-0.8
10-1000
6.08-78.13
Φ318
GJ200/12
Φ0.32-0.85
Φ0.5-0.8
10-700
6.08-78.13
Φ318

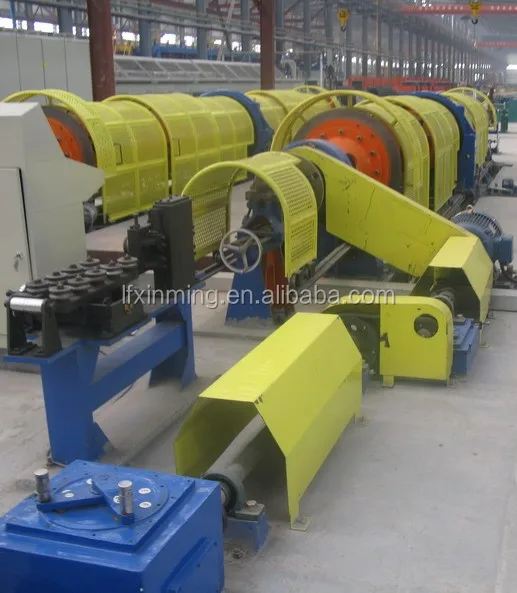

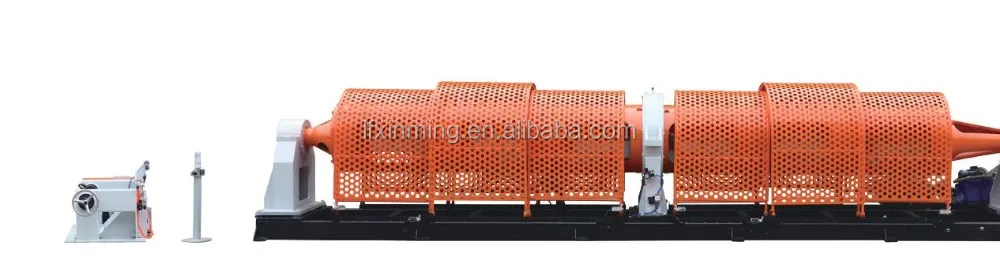

XM1+12/630 Tubular Stranding Machine for Bare Copper / Aluminum / Steel 7 Wire Strand, Conductor Stranding Equipment


1 Application:

The machine is used for stranding steel, aluminum and copper wires.

2 Main technical data

2.1 Single wire dia.

Copper wire φ1.2~4.0mm

Steel wire φ1.2~3.5mm

Aluminum wire φ1.5~5.0mm

2.2 Max. O.D. of stranded cable Φ25mm

2.3 Stranding pitch 47~354mm

2.4 Max. rev of cage 400r/min

2.5 Line speed of hauling-off 18.6~141.5m/min

2.6 Dia. of capstan wheel Φ1600mm(dual wheel)

2.7 Pay-off bobbin in the cage Φ630mm

2.8 Central pay-off bobbin Φ800~Φ1600mm

2.9 Take-up bobbin Φ1000~Φ2000mm

2.10 Main motor(2 sets) 30kW (AC Inverter motor)
More Products

Extruding Machine

Stranding / Twisting Machine

Laying-up / Cabling Machine

Bunching Machine

Wire Drawing Machine

Coil Winding & Packing M/c

Company Information

Langfang Xinming Cable Machinery Industry Co., Ltd. has become one of the best quality equipment manufacturers and suppliers of plants & machinery required for cable manufacturing / processing, especially specialized in wire and cable machinery design & manufacture since 1984. We are catering our services both domestic market as well as international market for last 25 years. We assure quality & time bound supply of our quality products & services to all our customers.


The efficient performances of our machines enable


us to fetch prestigious orders from cable manufactu


rers in many countries like Russia, America, Peru,


Brazil, Ukraine, Georgia, Kazakhstan, Turkey, Belarus


, Iran, Iraq, Sudan, India, Burma, Thailand, Vietnam,


Philippine, Malaysia, Korea etc.



Various wire & cable manufacturing and finishing machinery:
Cable and stranding machines: cable extrusion, sheathing and

insulating, stranding, twisting, cabling or laying up, bunching,

cable marking, insulation stripper, powder applicator etc.
(Continuous) wire drawing machines

Auxiliaries: pay-off and take-up machine series, haul-off device,

armoring, wire accumulator stand, cable ink printer, meter counter, diameter gauge, spark tester, extrusion die, etc.
